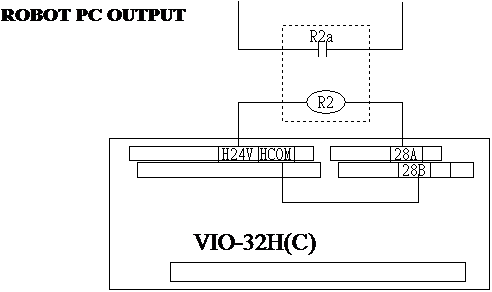

If you want to install a robot on the machine, the C-6000 controller provides a protection circuit for robot control and mold protection. Please refer to below diagram for robot circuit wiring.
• Connect the robot to the appropriate input point (default is PB23).
• Connect the robot to the appropriate output point (default is PC28).
• Activate the robot mode in the Other Settings screen (refer to the Other Functions and Settings section).
