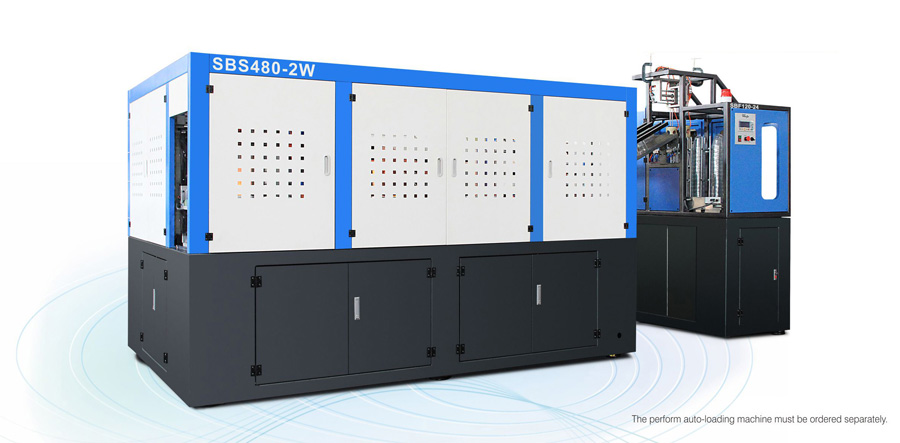

Jars / Wide-mouth PET Bottle Stretch Blow Molding Machine
- Toggle mould locking mechanism guarantees big clamping force, no expansion of mould, no increase of high pressure air consumption.
- Sliding transferring guarantees stable, fast and accurate operation.
- Self-locked high pressure sealing makes stable sealing, no impact, and no wearing. Indepentant controlled stretch bar provides accurate stretching.
- Automatic preform handling equipment and robots for perform loading & take-out make production process fully automatic.
- Latest high speed PLC and Chinese-English HMI are adopted. The time setting can be accurate in 0.01 second. It makes the operation more easy and the technical setting more accurate.
- High quality pneumatic parts are imported from Europe or Japan. Fast feedback solenoid valve (from Germany) is adopted in high-pressure blowing. It ensures the second blow time accurate and controllable.
- Centralized heating makes even, stable effect, and reduces power consumption mostly.
- Close-loop heating control system with corresponsive high accurate digital meter, and imported adjustable high power frequency controller, make sure stable heating, energy saving and not to be affected by fluctuated voltage. IR lamp which is most efficient for PET heating, is fully considered for lower power consumption and higher production efficiency.
| Description | UNIT | SBS480-2W | SBS480-2L |
|---|---|---|---|
| Clamping force | KN | 480 | 480 |
| Bottle capacity | ml | 7000 | 7000 |
| Reference output | BPH | 1100 | 1300 |
| Max. diameter of neck | mm | 120 | 45 |
| Max. diameter of bottle | mm | 200 | 200 |
| Max. height of bottle | mm | 300 | 320 |
| Mold cavities | 2 | 2 | |
| Central distance | mm | 220 | 220 |
| Power rating | KW | 55 | 67 |
| Power consumption | KW | <28 | <34 |
| Operation pressure | Mpa | 0.8 | 0.8 |
| Air Consumption | M3/min | 3.0 | 3.0 |
| High pressure | Mpa | 3.0 | 3.0 |
| Air Consumption | M3/min | 3.5 | 3.5 |
| Machine dimensions | M | 3.1×2.0x2.0 | 3.1×2.0x2.0 |
| Machine weight | Ton | 4.0 | 4.0 |
| * Some data may updated without any notice | |||
